Seamless Power Backup | Grid-Interactive | Advanced MPPT & EMS
Model: EMGS Series
Rate power: 105/125kW
Battery voltage range: 680-950Vdc
AC voltage: 400Vac (320~480Vac)
MPPT: 200kW
رقم الصنف :
EMGS Seriesالنظام (موك) :
1قسط :
T/Tأصل المنتج :
Chinaلون :
RAL7035ميناء الشحن :
Shenzhenمهلة :
2-4 weeksوزن :
<500 KgDescription

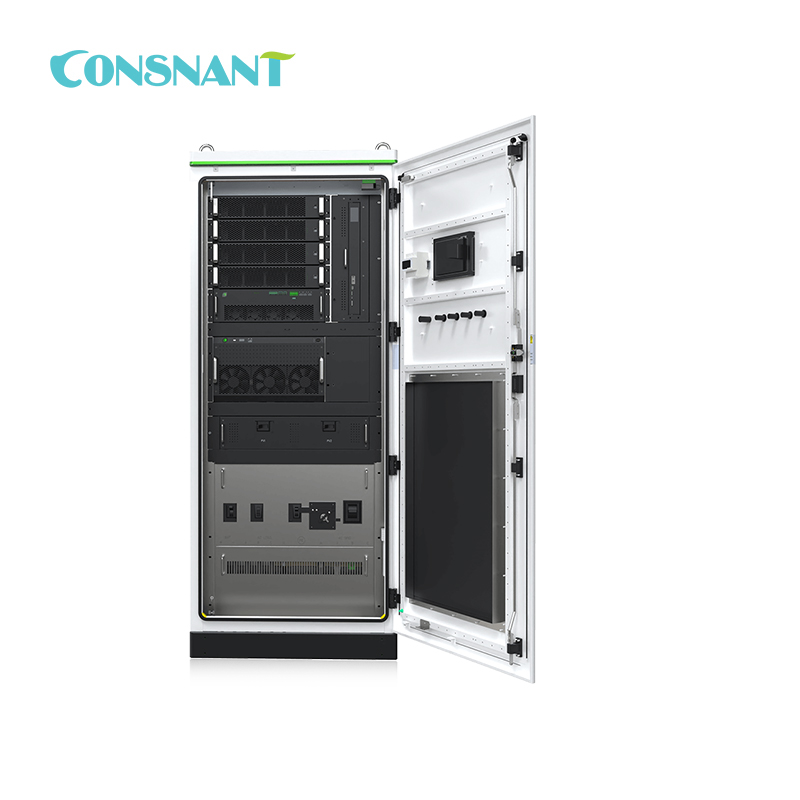

CONSNANT 105/125kW Hybrid Cabinet integrates MPPT, PCS, STS, and EMS for seamless grid/off-grid transitions, real-time monitoring, and flexible energy management. Ideal for backup power, microgrids, and grid storage, it ensures uninterrupted operation and supports parallel expansion.
SLD PRINCIPLE
Core Values
Handles inductive and motor loads, ensuring stable operation in demanding applications.
Supports DC-coupled solar-storage systems with flexible charging and discharging strategies.
20ms automatic switching ensures uninterrupted power for critical loads.
Supports system paralleling, remote monitoring, and real-time energy optimization.
Typical Application

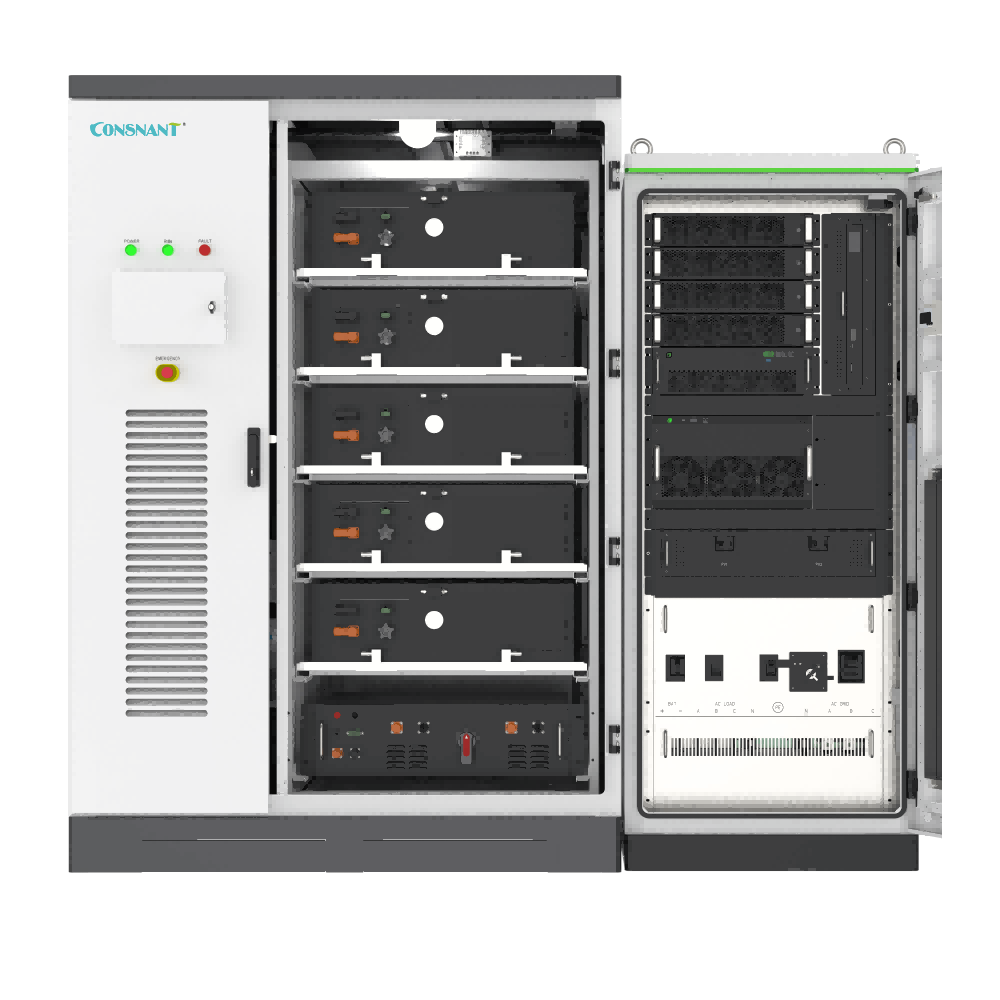

LIQUID COOLING BESS
The 105/125kW Hybrid Cabinet integrates a BESS system with the liquid-cooled battery cabinet.

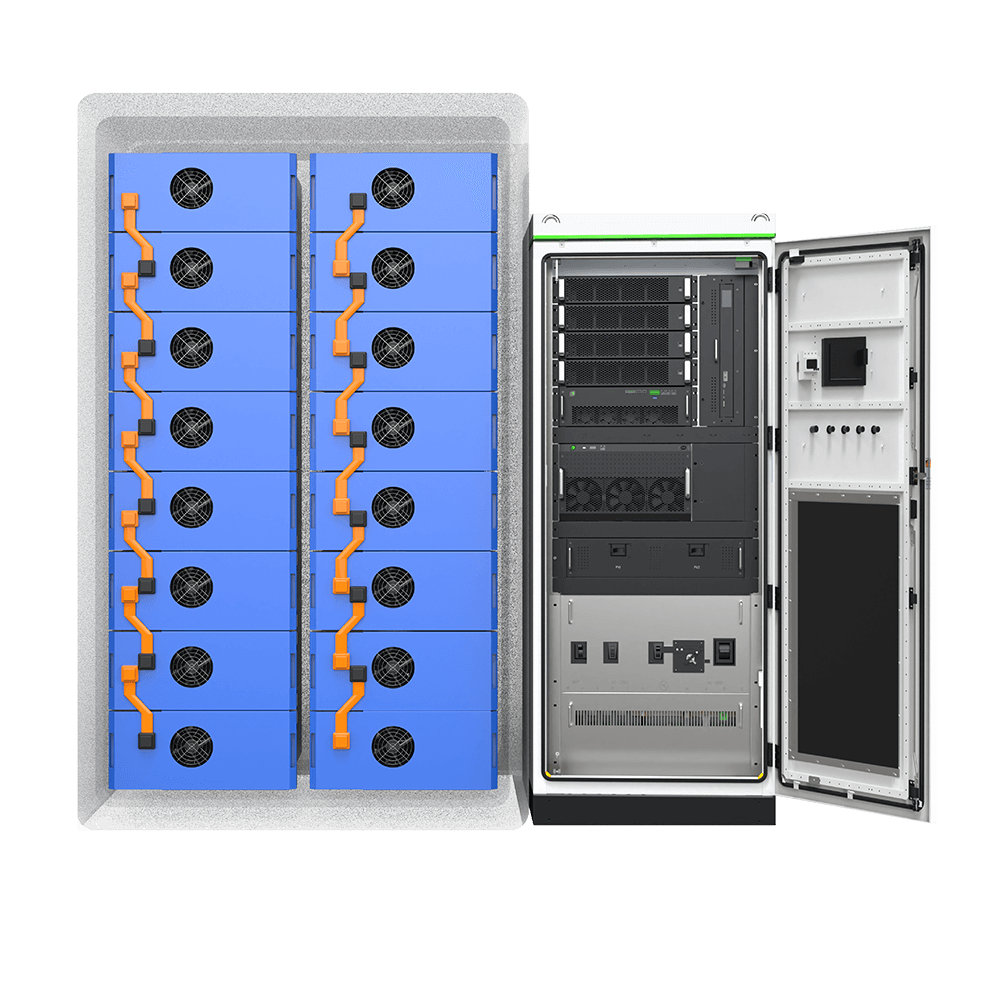

AIR COOLING BESS
The 105/125kW Hybrid Cabinet integrates a BESS system with the air-cooled battery cabinet.
Expandable: CONSNANT 105/125kW Hybrid BESS Inverter supports parallel operation of up to three units, delivering a scalable power solution of up to 375kW. Ideal for grid-tied and off-grid energy storage, it ensures flexible system expansion, enhanced reliability, and optimized power management.
Technical Parameters:
| Spec. | EMGS100-MS | EMGS100-MHS | EMGS125-MS | EMGS125-MHS |
| Input( PV) | ||||
| Max Input Power | 50kW*2 | 50kW*4 | 50kW*2 | 50kW*4 |
| MaxPVOpen Circuit Voltage | 900V | |||
| MPPT Voltage Range | 180V~800V | |||
| MPPT Quantity | 2 | 4 | 2 | 4 |
| Input(BAT) | ||||
| Battery Type | Lithium Battery/Lead-Acid Battery | |||
| Max.Charging Power | 110kW | 150kW | 110kW | 187.5kW |
| Max.Discharging Power | 110kW | 110kW | 110kW | 137.5kW |
| Operating Voltage Range | 250V-820V | 680V~950V | 250V-820V | 680V~950V |
| Max.Charging Current | 200A | 225A | 200A | 225A |
| Max.Discharging Current | 200A | 178A | 200A | 224A |
| AC Side | ||||
| Grid Connection | 3P3W/3P4W | |||
| Rated Output Capacity | 100kVA |
125kVA |
||
| Max.Output Capacity | 110kVA |
137.5kVA |
||
| Max.Grid Input Capacity | 200kVA | 250kVA | ||
| Rated Grid Frequency | 50/60Hz | |||
| Max.Input Current | 288A | 360A | ||
| Max.Output Current | 144A | 180A | ||
| Overload Capability | 110%Long term | |||
| Power Factor | 0.99/-1~1 | |||
| System Parameters | ||||
| Features &Protection | Anti-lslanding Protection,DC Reverse Polarity Protection,Insulation Detection,DC Surge Protection, AC Surge Protection,DC Short Circuit Protection,AC Overcurrent Protection,AC Short Circuit Protection,and AC Under/Over Voltage Protection |
|||
| Operating Temperature | -30℃~60℃(>45℃ Deratng) | |||
| Operating Humidity | 5%~95%RH,Non-Condensing | |||
| Altitude | 4000m(>2000m Derating) | |||
| Cooling Method | Intelligent Air Cooling | |||
| Communication Method | Ethernet/4G/RS485/CAN | |||
| Weight | <500kg | |||
| Dimensions (W*H*D) | 800×2000×1100mm | |||
| Protection Level | IP55 | |||
| Safety Rating | I | |||
| Overvoltage Level | Ⅱ (DC side), Ⅲ(AC side) | |||
| *Product specifications are subject to periodic updates without prior notice. | ||||
